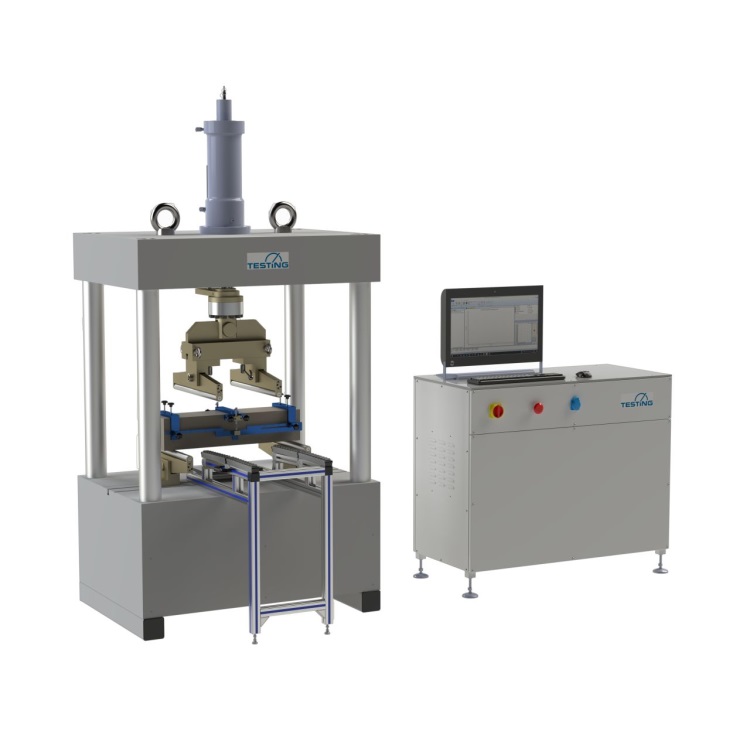

The bending testing machine is suitable for bending tensile strength tests of various steel fibre concretes, concrete beams and shotcrete. A position measuring system is installed in the cylinder by default. The massive steel frame is extremely stiff, the columns are tensioned without any play. High accuracy class 1 according to DIN EN 7500-1 in a very wide measuring range.
Norms: DAfStb Guideline / DBV annex, EN 14651- CMOD, EN 14488-3, EN 14888-5, EN 12390-5, SIA 162/6, ASTM C1550, ASTM C1609, ASTM C1399, Barcelona Test (and many more, if necessary) - Accessories required
Other force ranges:
22.1403.S1-SV-i20: 100 kN
22.1402.S1-SV-i20: 200 kN
- Technical specifications
Frame type: 4-column frame
Force display range: 0 - 300 kN
Force measuring range: 3 - 300 kN, class 1
Stroke: 250 mm
Distance between columns: Front 960 mm / Side 610 mm
Bending roll length: 510 mm
Bending roll diameter: Ø 30 mm
Distance between upper bending rolls: 75 - 340 mm
Distance between lower bending rolls: 70 - 1020 mm- Control Unit
Doli EDC provides fully automated experimental procedures with predetermined rate of loading, force controlled tests (deformation and displacement controlled tests require further accessories), automatic break detection.
- Safety
A large area of the testing machine can be equipped optionally with an impact-resistant, transparent test room protection made of polycarbonate.
- Dimensions
Test frame: (W x D x H) 1200 x 850 x 2450 mm
Weight: approx. 4300 kg
Control cabinet: (W x D x H) 1200 x 570 x 1040 mm
Weight: approx. 350 kg
3 ~ 400 V / 50 Hz - 1.5 kW
