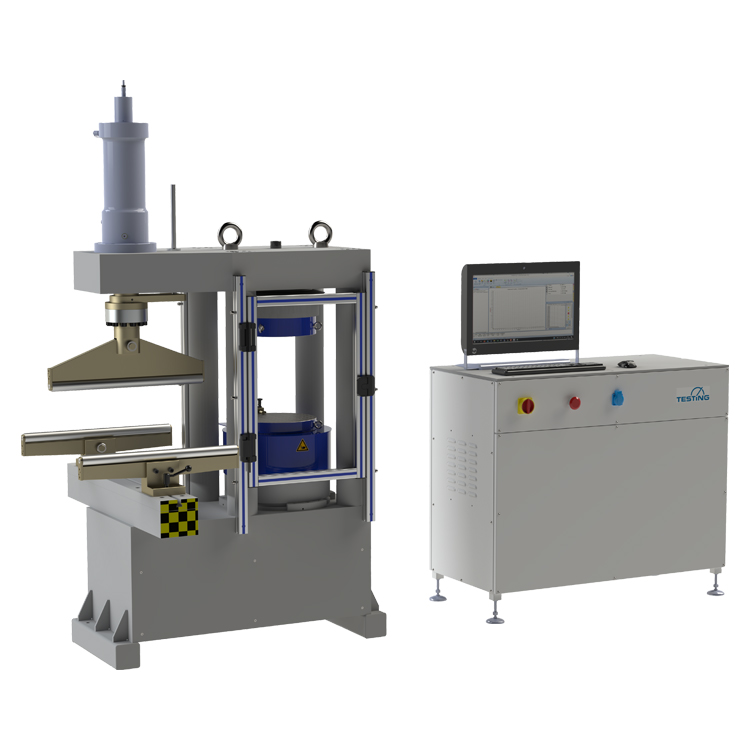

The testing machine combination is a space-saving unit consisting of compression and bending testing machine, which is suitable for compressive strength tests of light, normal and heavy concrete. Optionally a position measuring system can be installed. The massive steel frame is extremely stiff, the columns are tensioned without any play. According to DIN EN 12390-4 and class 1 according to DIN EN 7500-1 in the specified measuring range.
Norms: DIN EN 12390-3, 12504-1, 12390-6, 12390-13, 1338, 206, ASTM C39, C140, C1314, E4, AASHTO T22, DIN EN 12390-5, 1339, 1340, ASTM C78, C293, C469, C496, C1019, C109/C109M
Other force ranges:
22.2401.01-SV-i20: 3000 / 100 kN
22.2402.01-SV-i20: 3000 / 150 kN
22.2403.01-SV-i20: 3000 / 200 kN
- Samples
- Cubes (edge length): 200, 150, 100 mm
Cylinder (height): 300, 200 mm
Devices (height): up to 330 mm e.g. splitting tensile
Beams: 150 x 150 x 750 / 100 x 100 x 500
Other samples possible - Technical specifications compression side
- Force display range: 0 - 3000 kN
Force measuring range: 60 - 3000kN, class 1
Stroke: 100 mm
Test chamber height: 340 mm
Column spacing: front 360 mm; side 260 mm
Machine platens: Ø 320 mm according to DIN EN 12390-4
Optional rectangular machine platen variants - Technical specifications flexure side
- Frame type: open C-Frame
Force display range: 0 - 300 kN
Force measuring range: 3 - 300kN, class 1
Stroke: 220 mm
Distance between Bending edges: 220 mm
Bending roll length: 620 mm
Bending roll diameter: Ø 40 mm
Distance between lower bending rolls: 70 - 850 mm
Optional addition length and diameter - Control Unit
- Doli EDC provides fully automated experimental procedures with predetermined rate of loading force controlled tests (deformation and displacement controlled tests require further accessories), automatic break detection.
- Safety
- A large area of the testing machine is equipped with an impact-resistant, transparent test room protection made of polycarbonate.
- Dimensions
- Control Unit: (W x D x H) = 1200 x 570 x 1040 mm
Weight: approx. 350 kg
3 ~ 400 V / 50 Hz - 1.5 kW
Test Frame: (W x D x H) = 1170 x 1040 x 2280 mm
Weight: approx. 2500 kg
