According to EN 196-1. Smooth styling in stainless steel but very sturdy frame inside.
- Technical Data
- Switch box for wall fastening
Peak-to-peak value: 0.75 ± 0,05 mm
Oscillation frequency: 50 Hz
Sinusoidal waveform
Digital timer

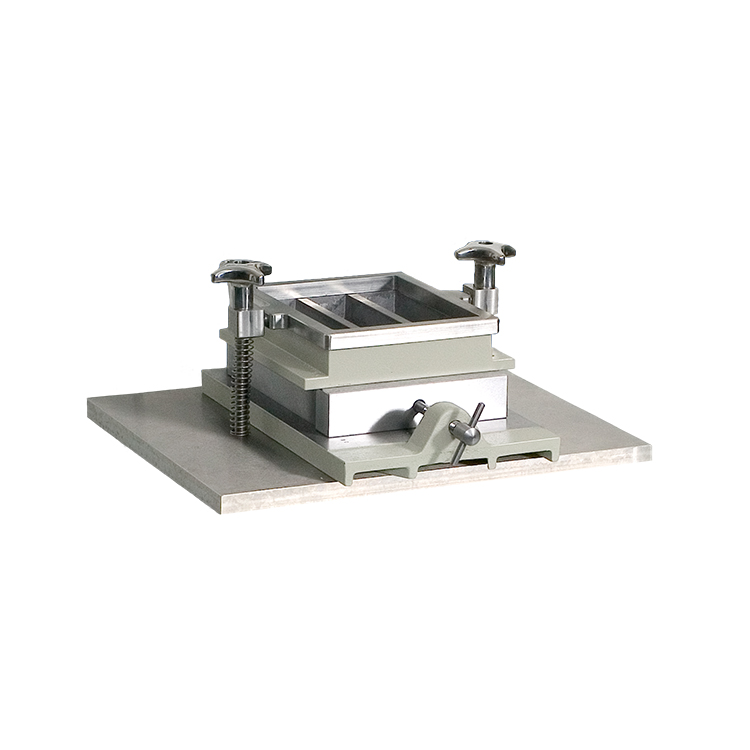

General-purpose clamping device for fixing one three-gang mould 40 x 40 x 160 mm with feeding hopper
The mould with hopper is fixed on the vibrating plate by a frame - Note
- A total vibrating mass of 35.0 +/- 1.5 kg
According to EN 196-1:2005
Can only be guaranteed by utilizing a TESTING precision three-gang mould with feeding hopper - Optional
- The switch box can be fixed at the worktable (stainless steel) by a stand (tripod)
Dimensions of the worktable can be adjusted individually - Dimensions
- (W x D x H) = 750 x 700 x 850 mm
Weight: 230 kg
230 V / 50 Hz
