According to ASTM C141, ASTM C151.
- Technical Data
- For mortar prisms, 25 bar

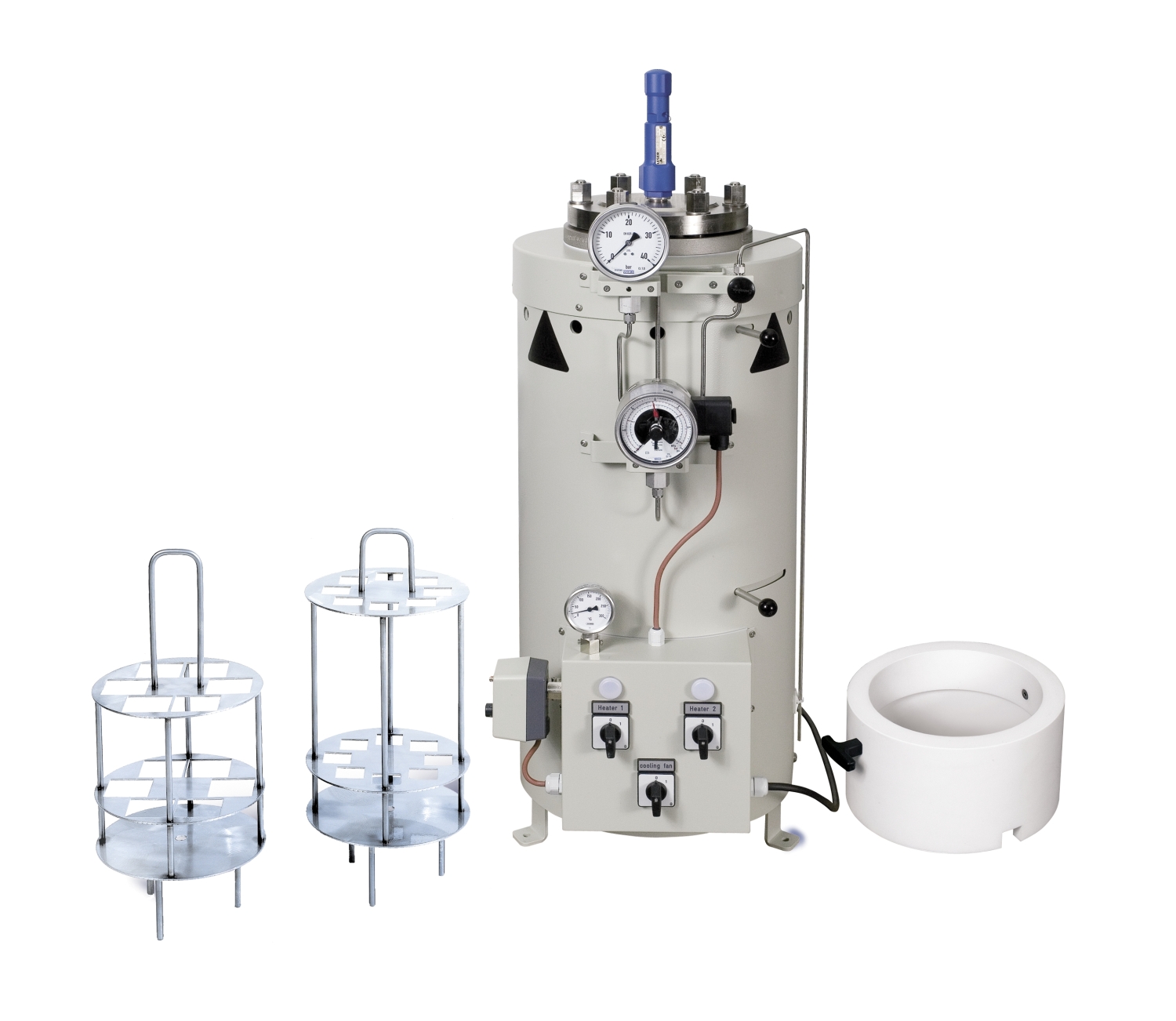

For determination of the volume constancy (soundness) of mortar prisms 1" x 1" x 11 ¼" or 40 x 40 x 160 mm
Unique safety standard as a result of TÜV testing of the pressure device (TÜV = German Technical Inspection Agency) with certificate in accordance with EC Pressure Device Directive. - Scope of delivery
- A high-pressure steam compartment to hold a sample holder of 8 prisms as per ASTM or 6 prisms as per DIN/EN:
Capacity: 7.8 litres
Max. pressure: 25 bar
Max. temperature: 250°C
2 gauges for temperature and pressure
Safety temperature limiter
Cover ring for top lid
Thermometer
Security test certificate for pressure chamber in accordance with EN Pressure Device Directive - Dimensions
- 1120 mm height, 550 mm dia.
Weight: 80 kg
230 V / 50 Hz / 16 A / 2.3 kW
